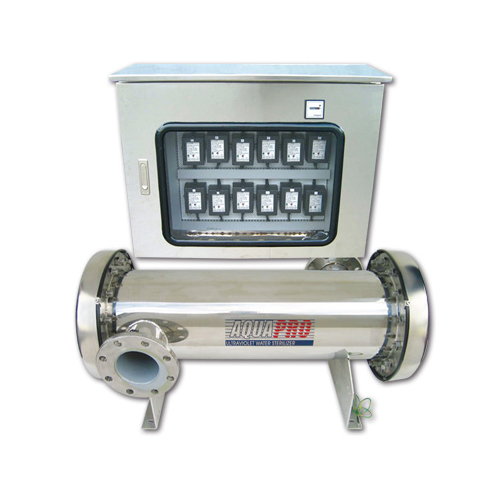

UV120GPM-HTM
| 100GPM &120GPM STANDARD SPECIFICATION | ||||||||||||||||||||||||||||||||
|
Description
Heavy duty stainless steel pressure vessel
Heavy duty quartz sleeve
High output, hard glass UV lamps for maximum efficiency
CE ballast with lamp failure indicator and warning buzzer
Ceramic end cap of UV lamp
30000mic. watt sec/cm2 at energy of 253.7nm wave length
Working pressure 125PSI
Low power consumption
9000 hours lamp life (approx. 1 year of use)
110/220V, 50HZ/60HZ
Vertical or Horizontal installation
